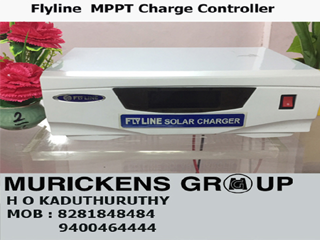

FLYLINE SOLAR CHARGE CONTROLLER

FLYLINE SOLAR CHARGE CONTROLLER

Flyline Solar Charger Controller is used to regulate the power supply flowing through battery packs while charging or discharging to give a fault free and long life to the battery. If there is a normal UPS at the customer premises then it can be connected to a solar charge controller. our unit is zero drop and high efficient. The main advantage of Flyline Solar Charger is that it can be used to convert any normal inverter or ups into solar power charging with the help of proportionate watt of solar panels. Through this we get two way benefits [1] we can avoid misuse of electricity due to the conversion from AC to DC while charging the batteries from grid.[2] we can enjoy the free energy of solar power.We have made a place of our own in the field of solar based power units since our installation in 2000 and have done thousands of solar power units in many places including Kerala Agriculture Research University, Malapuram, The CISF 7th battalion military camp, Hyderabad, International Airport ,Karipoor, Govt. of India, Dept. of Space, Sreeharikotta, Central Marine Fisheries Research Institute,Cochin, Vallarpadam Container Terminal (IGTPL) etc.and many other private organisations. For a trouble free service of the system, it is essential that the installation should be undertaken by a well qualified and experienced technical person to get 100% out put of the system and to avoid unnecessary expenses.




FLYLINE Pulse Width Modulation Solar Charging Controllers (PWM) Common Features (MPCT)

* The main advantage of Flyline Solar Charger is high efficient " Zero Drop" (we get 100 % efficiency). MPCT (Maximum power converting technology *Comparing to MPPT, there is no heat conversion efficiency lose in this special model. *German Technology assures the quality of product. * ISO 9001- 2008 certified Flyline Solar Charger. * It is commonly used products. * This charging controllers are used for smaller and medium power controlling units. * The technical features are same with IGBT. * The control system controls the whole system taking care of battery over charging cut off, deep discharging cut off, protections in battery reverse, PV reverse, Overload and Short circuit. * Our product connection diagram printed on it.*Micro controller based. *LED, bar glass or LCD - display-battery voltage, load on/off, battery condition charging on/off in 12/24 V*Up to 80 amp auto detection for 12v/24v (automatic sensing).

TECHNICAL FEATURES FLYLINE SOLAR CHARGE CONTROLLER

FLYLINE PWM/MOSFET SOLAR CHARGER CONTROLLER TECHNICAL FEATURES
Switching
Zero drop back to back PWM  MOSFET base
Nominal battery voltage
12 V   to 48 V DC
Maximum out put amp
4AMP- 100 AMP
Stand by consumption
less than 1w
Charging REG
2  stage
Battery tem combination
5MV@40DIG
Product Display
LED, bar graph or LCD
Max. panel  input voltage
16V@12V
Battery input
 8 to15 Volt (for 12 V).19 to 30 Volt ( for 24 V)
Panel  input
 10 to30 Volt (for 24 V).21 to 60 Volt ( for 24 V)
Battery input
 32 to 60 Volt ( for 48 V)
Panel  input
 40 to 120 Volt ( for 48 V)
Mobile charging
USB & DC SOCKET in small capacities
DC LOAD
UN REGULATED
Efficiency
100 %

To see more pictures of flyline solar charge controller :- click here
see More details of flyline solar charge controller:- click here

Electronic Products Watts Calculator :- Click Here

Flyline Solar Power Plant Installation Video of Murikens:-  Click Here

GOVT clients list of Murickens Group :-  Click Here

Flyline Solar Power Plant Working Animation :- Click Here

Murickes Brouchure :- Click Here

For quick response & order-call ( 91) 09400464444,  09447366779, 08281848484
