In this system the voltage is reduced from primary windings to the secondary windings. In this a transformer is designed in such a way that the primary winding turns is more than the secondary winding turns and this in turn converts high-voltage, low current power into low-voltage high current power. So larger the gauge wire in secondary to make up with the increase in current and primary windings is made of smaller gauge wire due to that it does not have to conduct as much current. It steps down the current from 220 v to 110 v. The output voltage 90 to 120V for inputs from 160V to 270V.Act as a guard for 110 volt imported home appliance and electronic equipments.
* The best way to get 110 Volt from Indian standard variable volt of 240. * Act as a guard for 110 volt imported home appliance and electronic equipments. * High / low voltage protection. * Protection from lightening. * Maintenance free. * Low power consumption. * Compact in size. * It can be carried from one place to another place. * No noise or hissing sound. * Output voltage 90 to 120V for inputs 160V to 270V. * Frequency 47Hz to 53Hz
TECHNICAL FEATURES FLYLINE 110 V STEP DOWN STABILIZER
FLYLINE 110 V STEP DOWN STABILIZER | |||
Sl. |
Parameter | Standard single phase | |
1 | Rating | 1 KVA to 5 KVA | |
2 | Input Voltage Range | 210 to 240 | |
3 | AVR | nil | |
4 | AVR from | nil | |
5 | Nominal Output Voltage | 90V to 120V | |
6 | Output Voltage Accuracy | Depended on input volt | |
7 | Switch | On -off control | |
8 | Efficiency | 97% | |
9 | Protection | Lightning, over volt, low volt | |
10 | Winding | Copper winded | |
11 | Waveform | Pure Sine Wave | |
12 | Mounting | Free |

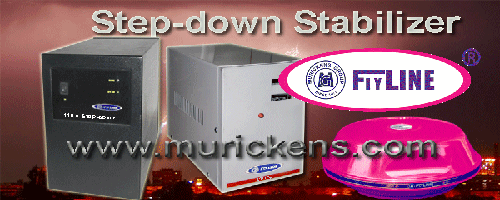

Flyline Stepdown Stabilizer Picture : Click Here
