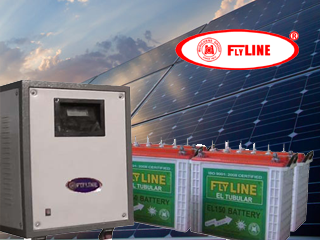

In this age of non renewable energy scarcity we need to think wisely about utilizing renewable energy recourses. The field of renewable energy power production is boosting now a days. It is really important that you choose the best available technology for your needs. Murickens Group with over 30 years of experience in the field of renewable energy power production introduce to you Flyline Stand Alone System which is a 100% alternative to your K.S.E.B. power supply. Flyline solar off-grid power system is an electronic device which converts direct current into alternating current.
FLYLINE STANDALONE INVERTER MORE INSTALLATION VIDEOS:-CLICK HERE
FLYLINE STANDALONE INVERTER MORE IMAGES:-CLICK HERE
DC to AC inverters are available with power outputs ranging from 1 KVA to 100 KVA and conversion efficiencies greater than 90%.We have made a place of our own in the field of solar based power units since the installation from 2000 and have done thousands of solar power unit installations in many places including Agricultural University in Malapuram, Government of Kerala,CISF 7th battalion military campin Karipoor Airport, ISRO Sreeharikotta, Marine Fisheries Dept of India, Vallarpadam Container Terminal (IGTPL) etc.It is very essential that to get 100% out put of Solar Power Unit, the installation should be taken by a well experinced technical staff and also it gets a smooth and trouble free function of the system consumption is depending up on that you turn to an experienced technical advice.
* Pure sine wave out put. *ISO: 9001 -2015 Certified solar power conditioner. * IGBT with German PWM intelligent charging technology.* Work with solar power, the best way to save money using natural resource.* Maintenance Free. * Attractive Designs. *Pollution free type. * Single Switch Operation. * Fully automatic. * IGBT based topology. * Protection from lightening, * Over Load Protection. * Over Charge and Deep Discharge cut off. * Independent Digital display inverter input and out put voltage, load, etc. * Audio and Visual Indicators. * Can connect to the existing wiring. * No husking sound. * It is a fully automatic built-in charging control or external system, No need of any manpower. * Provisions for connecting grid power. *Optional mains charger ON/OFF switch. *Back-up power support. * Option for customization of back-up power.*The Special feature of the system is when we connected to main line - if the battery is full and there is sufficient sunlight the system will automatically cut the main line off (KSEB Line) and connect the solar system. * Our built in solar charger is floating type and once it fully charges the battery, it gone to trickle charging. This will provide more battery life and can utilize 100 % efficiency of solar panel power.. *An ideal unit for day and nights power supply.
TECHNICAL FEATURES OF FLYLINE STANDALONE SOLAR POWER INVERTER
Sl. No. | Parameter | Single Phase Unit | Three Phase Unit | ||||||
1 | Rating | 1 KVA to 15 KVA | 6 KVA to 100 KVA | ||||||
2 | Battery Volt /KVA | 1KVA-36V | 2KVA- 48-72V | 3KVA- 72V | 5KVA- 96 -192V | 8KVA- 120V-192v | 10KVA- 192-240V | 12KVA- 192-240V | 15KVA- 240V-348v |
3 | Input Voltage Range | 190 V -270 V ac or solar dc | 375-450V ac or solar dc | ||||||
4 | Nominal Output Voltage | 220V | 415V | ||||||
5 | Output Frequency | ± 1% | ± 3% | ||||||
6 | Input Frequency | 50 Hz: ± 1% | 50 Hz: ± 1% | ||||||
7 | Power Factory | -0.8 lagging to unity | |||||||
8 | Voltage Correction Rate 1. Air Cooled 2. Oil Cooled |
Voltage Correction | 35V/Sec. | ||||||
9 | 35V/ Sec | ||||||||
10 | 35V/ Sec | 35V/ Sec | |||||||
11 | Efficiency | 90% | 90% | ||||||
12 | Control | Digital | Digital | ||||||
13 | Transformer | High Efficient | High Efficient | ||||||
14 | Noise | Low noise <50db | |||||||
15 | Heat | < 4 0 o C | |||||||
16 | Wave form | Pure sine wave | |||||||
17 | Mounting | Free on wheel | |||||||
compact in size | |||||||||
19 | Solar charger-built-in | Floating type & Trickle charging. | Floating type & Trickle charging. | ||||||
